8mm to VHS Cassette Adapter
Does such a thing exist? Short answer – NO
VHS and 8mm video formats are vastly different and are not compatible with each other. VHS is half inch tape while Hi8 / video 8 is 8mm wide. The recording formats also differ hugely in terms of the way the information is recorded onto the tape. The 2 formats were launched to compete with one another in the domestic camcorder market.
VHS C / VHS Compact
VHS has a smaller cousin – VHS C (Compact). VHS C or Compact was introduced to compete against 8mm / Hi8 in the consumer camera market.
VHS C had one advantage over 8mm video formats in that one could use a VHS cassette adaptor. The VHS C cassette adaptor would allow the smaller or compact cassette to be played in a normal VHS VCR. Only VHS C tapes fit into the adaptor.
There is no adaptor to allow an 8mm tape to fit into a VHS machine.
Some of the obvious differences between 8mm video and VHS C
Apart from the obvious differences in physical appearance and size, other factors such as tape / video head speed ratio, FM vs longitudinal audio recording and synch signal recording, make the formats technically incompatible.

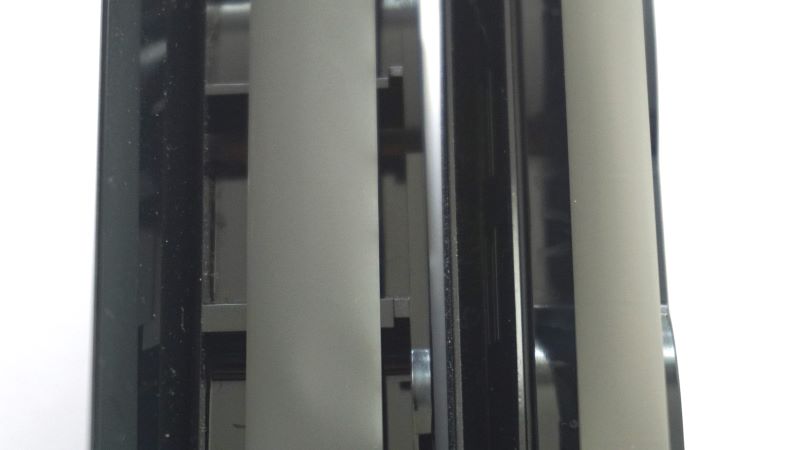

VHS C tape (left) compared to a Video 8 tape (right). The tape width 12.7mm for VHS C vs 8mm for the Video 8 range of formats.
This in itself makes the 2 formats totally incompatible with one another.
Video 8 vs VHS C – the cassette sizes vary slightly.

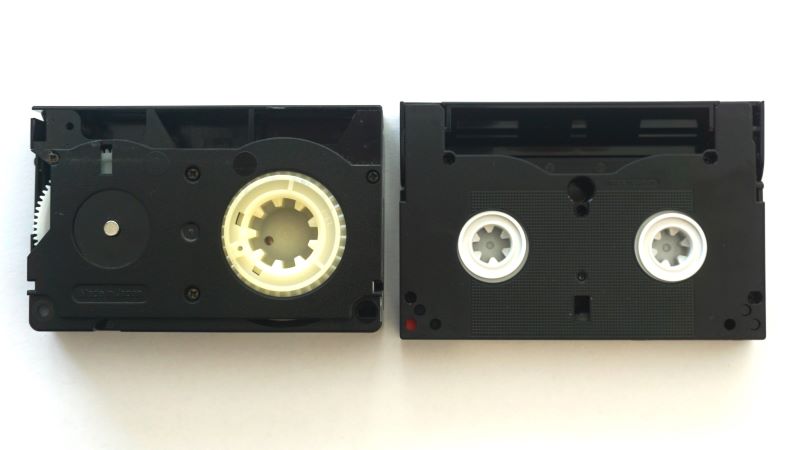

VHS C (left) and Video8 (right)
VHS C has a geared drive system on the take up reel. The reel hubs are different sizes and required different drive systems.

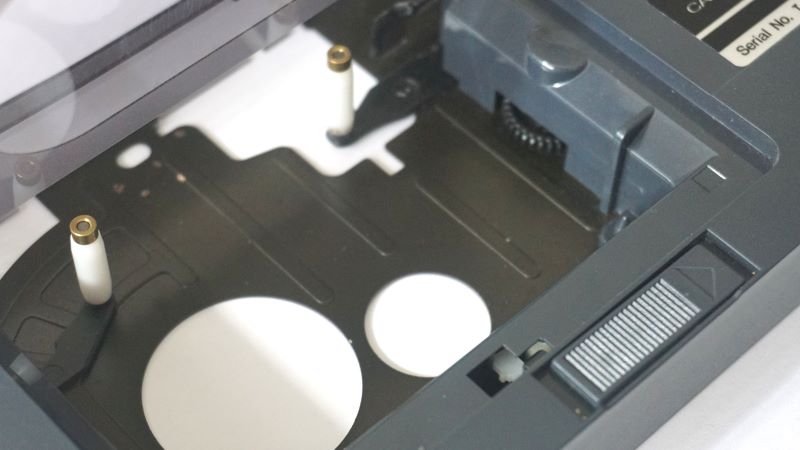

Close up of the inside of a VHSC Cassette adaptor.
The little gear on the side of the internal compartment engages with the gear on the take up reel of the VHS C tape.
When a VHS C tape is inserted into the cassette adaptor, the tape guides extract the tape and position them such that they are identical to a VHS tape.
Pros and Cons
I would argue that 8mm / Hi8 was a better format, image and audio quality was superior to the VHS C format.
VHS C
- 1/2 inch tape.
- 45 or 60 minute tapes – longer if the LP mode is selected.
- Can be played in a VHS VCR with a cassette adaptor.
- Poor image quality – when compared to Video 8.
- Poor audio recording – when compared to Video 8.
- Larger mechanism.
8/Hi8
- 8mm tape.
- 30, 60, 90 and 120 minute tapes with LP options.
- Cannot be played in a VHS VCR.
- Playback via the camera or dedicated 8mm VCR.
- Superior image recording – when compared to VHS C.
- Better audio recording – when compared to VHS C.
- Smaller mechanism.
